Light duty slurry pump installation Types

Views:4     Author:Site Editor     Publish Time: 2018-09-25      Origin:Site Inquire

DC type: The output shaft of the motor of the China Metal Light Duty Slurry Pump is directly connected to the input shaft of the pump through the pump coupling. This type of connection is suitable for applications where the speed of the China Metal Light Duty Slurry Pump is the same as the speed of the motor.



Type CV: The China Metal Light Duty Slurry Pump is driven by a belt connected to the crankshaft of the engine. This connection saves space, is easy to install, and allows for quick adjustment of pumping speed. The motor is fixed on the motor support frame, and the motor support frame is connected to the bearing seat above the pump.



ZV type: Another type of belt drive makes it easy to adjust the pumping speed. The motor is fixed directly to the housing. This type of mounting is suitable for motors with a larger horsepower than the CV type. This method helps to save installation space because the motor is mounted on the housing.



Type CR: This type of belt drive makes it easier to adjust the pumping speed. Installation allows the motor and mud light duty slurry pump to be fixed to the ground. The motor is mounted on the side of the pump. This mounting method is suitable for high power motors.

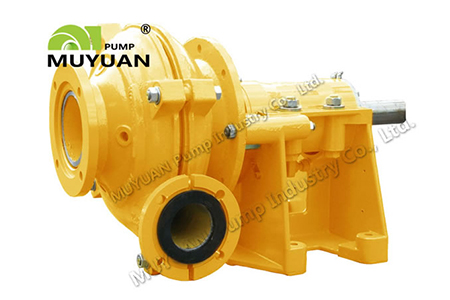

 China Metal Light Duty Slurry Pump
