Characteristic curves of a centrifugal pump

Views:6     Author:Site Editor     Publish Time: 2018-08-25      Origin:Site Inquire

Characteristic curves of centrifugal pumps are defined those curves which are plotted from the results of a number of tests on the centrifugal pump. These curves are necessary to predict the behavior and performance of the pump when the pump is working unders different flow rate, head and speed. The following are the important characteristics curves for the pump:

i.                     Main characteristic curves

ii.                   Operating characteristic curves

iii.                  Constant efficiency or Muschel curves

Main characteristics curves of centrifugal pump

These are obtained by fixing the speed at some arbitrary value of and plotting serarately H,HP, & ηagainst Q. The rate of flow Q is caried by means of the quantity H, HP,ηare calculated. A number of different values of N are chosen and one such set of curves is drawn for each speed.

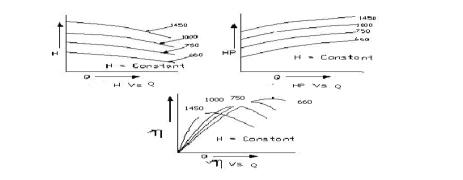

 QQ截图20180825134443

Fig 1.11 Main characteristics curves of centrifugal pump

Operating characteristics curves of centrifugal pump

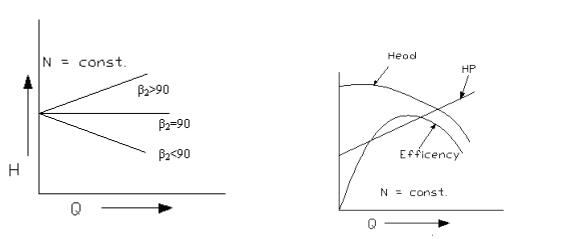

 QQ截图20180825134517

Fig. 1.12 Operating characteristic curves of centrifugal pump

During operation the pump must run at a constant speed. Normally, this is the designed speed. The particular set of main characteristics which correspond to the designed speed is mostly used in operation and is therefore known as operating characteristics.

Muschal curve or Constant efficiency curve

With the help of data obtained from the above curve, a series of constt. Efficiency curve can be obtained. The facilitate the job of the salesman and enable the prospective customer to see directly the range of operation with a particular efficiency.

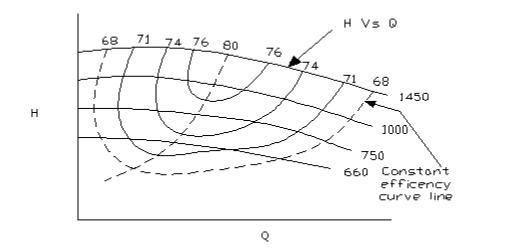

 QQ截图20180825134547

Fig. 1.13 Muschal curve or constant efficiency curve for centrifugal pump
